Product Name
Electronic Strength Testing Machine
Model No.
DW-A
DW-A Electronic strength testing machine.This unit is designed for a wide range of applications, such as the elongation, bending, compressing, tensile,tests of rubber, plastic, steel bar, other metal, etc.
DW-A Electronic strength testing machine.This unit is designed for a wide range of applications, such as the elongation, bending, compressing, tensile,tests of rubber, plastic, steel bar, other metal, etc.
STANDARDS | GBT 8813-2008,GBT 1041 | ASTM D 638-91, ASTM D 2990,ASTM D695 | ISO 844,ISO 604 |
GB/T8804,GB 228,GB 1040 | GBT 9341-2000, GB/T 1041-1992 | GB/T1446-1983 |
Note:this electronic strength testing machine can conform to but not limit to the standards above, for more standards conformance, please contact us.
| Capacity | 10kN,20KN,50KN,100KN |
| Load cell accuracy | grade 0.05 |
| Jog speed & return speed | 0.01~500mm/min |
| Max crosshead travel(including grips) | 600mm |
| Position measurement accuracy | 0.01mm |
| Capacity | 10kN,20KN,50KN,100KN |
| Load cell accuracy | grade 0.05 |
| Jog speed & return speed | 0.01~500mm/min |
| Max crosshead travel(including grips) | 600mm |
| Position measurement accuracy | 0.01mm |

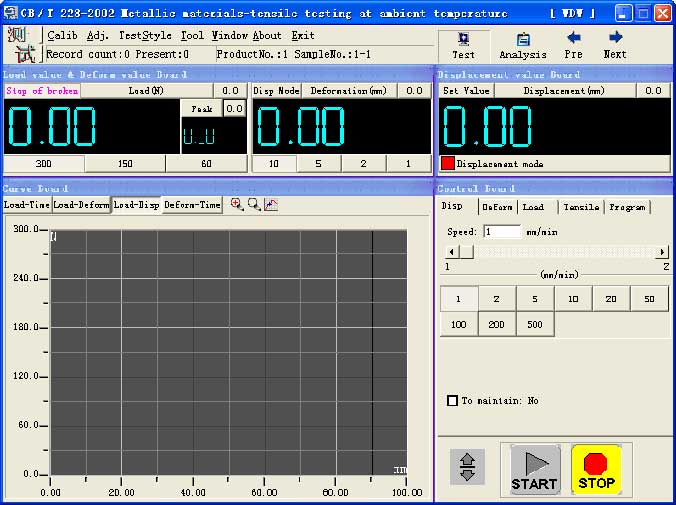

DW-A Electronic Strength Testing Machine: software
